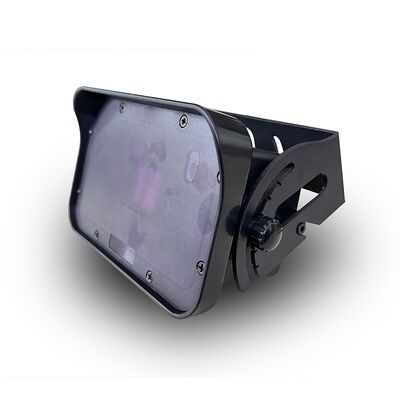

RVP42-7M Fast Response Radar Sensor Anti-Pinch for High Speed Industrial Rolling Door

RVP42-7M Fast Response Radar Sensor Anti-Pinch for High Speed Industrial Rolling Door​

Product Overview​

The RVP42-7M​ is a high-performance 24GHz Doppler radar motion sensor engineered for high-speed industrial rolling doors​ where rapid response and anti-pinch safety​ are critical. Leveraging advanced planar radar technology and intelligent digital signal processing, it detects approaching vehicles, forklifts, and personnel with exceptional accuracy and minimal latency. Designed for harsh industrial environments, the RVP42-7M combines ultra-fast triggering (<50ms), target discrimination, and electromagnetic interference immunity​ to ensure smooth, secure, and energy-efficient door operations.

Key Benefits for High Speed Rolling Doors​

• Ultra-Fast Detection​ – Responds in less than 50ms​ to match the operating speed of high-speed doors, preventing delays and enhancing workflow efficiency.

• Anti-Pinch Safety​ – Precisely identifies obstacles and personnel in the door’s path, enabling immediate reversal or stop to prevent accidents.

• Target Discrimination​ – Distinguishes between vehicles, pedestrians, and static objects to avoid unnecessary stops or false triggers.

• Electromagnetic Noise Immunity​ – Effectively suppresses interference from motors, inverters, and LED lighting commonly found in industrial settings.

• Rugged & Reliable​ – IP65-rated housing, wide temperature tolerance (-30°C to +60°C), and humidity resistance ensure stable performance in demanding environments.

• Flexible Configuration​ – Adjustable sensitivity, relay hold time (0.2–5s), and detection modes allow customization for different traffic patterns and door speeds.

Technical Specifications Table​

Functional Highlights for High Speed Rolling Doors​

• Instant Activation & Reversal​ – Ensures the door reacts instantly to approaching or obstructing objects, meeting safety compliance standards.

• Direction Recognition​ – Differentiates between entry and exit movements to optimize door cycling and reduce wear.

• Obstacle & Pedestrian Detection​ – Minimizes pinch risks by detecting people or equipment in the closing path.

• Customizable Timing​ – Relay hold time can be set to synchronize perfectly with door open/close cycles.

• Simple Installation​ – Includes mounting bracket, 7m pre-wired cable, and LED status indicator for quick setup and diagnostics.

Why RVP42-7M Excels in High Speed Door Applications​

Ideal Applications​

• High-speed rolling shutters in factories

• Logistics hubs with frequent forklift traffic

• Cold storage facilities requiring rapid door cycles

• Automotive assembly plants

• Food processing plants with hygiene-sensitive zones

Installation Recommendations​

• Mount at 2–7 meters height, aligned with the door’s opening path.

• Enable anti-EMI mode​ near motors, drives, or high-frequency lighting.

• Use lateral motion filter​ to ignore side traffic or conveyor movements.

• Adjust sensitivity to balance detection range and avoid false stops.

• Test door reversal behavior during commissioning to ensure pinch protection compliance.

Package Contents & Support​

• RVP42-7M sensor unit

• Mounting bracket and hardware

• 7-meter pre-wired cable

• User manual

• Optional: OEM/ODM branding and custom firmware

• Warranty: 2 years standard (extendable to 3 years)

• Support: 24-hour hotline, 48-hour email response, remote configuration assistance
