RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control
| উৎপত্তি স্থল | চীন |
|---|---|
| পরিচিতিমুলক নাম | JUTAI |
| সাক্ষ্যদান | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| মডেল নম্বার | আরভিপি 42-7 মি |
| ন্যূনতম চাহিদার পরিমাণ | 1 |
| মূল্য | negotiable |
| প্যাকেজিং বিবরণ | কার্টুন |
| ডেলিভারি সময় | 5-8 দিন |
| পরিশোধের শর্ত | টি/টি, এল/সি, ডি/এ, ডি/পি, ওয়েস্টার্ন ইউনিয়ন, পেপাল,, মানিগ্রাম, আলিপে |
| যোগানের ক্ষমতা | প্রতি মাসে 1000 টুকরা |
পণ্যের বিবরণ
| রাডার নীতি | 24.125GHz প্ল্যানার ডপলার রাডার | যানবাহন স্বীকৃতি | 95% উচ্চ নির্ভুলতা |
|---|---|---|---|
| পাওয়ার সাপ্লাই | 12-36V DC, <100mA | সুরক্ষা গ্রেড | IP65 ডাস্টপ্রুফ এবং ওয়াটারপ্রুফ |
| কাজের তাপমাত্রা | -30℃ ~ +60℃ | মাউন্ট উচ্চতা | 2m ~ 7m সামঞ্জস্যযোগ্য |
| প্রতিক্রিয়া সময় | <50ms আল্ট্রা-ফাস্ট | আউটপুট মোড | রিলে শুষ্ক যোগাযোগ |
| বিরোধী হস্তক্ষেপ | মাল্টি-স্টেজ সামঞ্জস্যযোগ্য ফিল্টার | পার্কিং ফাংশন | ইন/আউট ডিরেকশন রিকগনিশন |
| বিশেষভাবে তুলে ধরা | vehicle detection radar sensor,smart parking barrier gate radar,industrial door motion sensor |
||
পণ্যের বর্ণনা

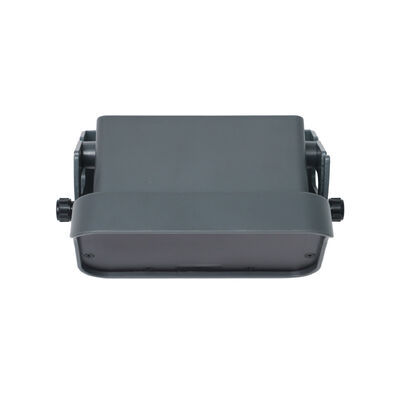

RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control
Product Summary
The RVP42-7M is a high-performance 24GHz Doppler radar sensor designed specifically for smart parking barrier gate systems. Using advanced planar radar technology and digital signal processing, it delivers precise vehicle detection, direction recognition, and reliable access control even in challenging outdoor environments. With ultra-low false alarm rates, rapid response time, and robust construction, the RVP42-7M ensures smooth traffic flow, enhanced security, and reduced maintenance costs for modern parking facilities.
Key Benefits for Parking Applications
-
Accurate Vehicle Detection – Identifies cars, vans, and light trucks approaching or leaving the gate with 95% accuracy.
-
Direction Awareness – Distinguishes between inbound and outbound vehicles to trigger barrier arms intelligently.
-
Reduced False Triggers – Filters out pedestrians, bicycles, and lateral movements to avoid unnecessary gate activation.
-
Fast & Consistent Performance – Response time under 50ms guarantees seamless entry/exit without delays.
-
Harsh Environment Ready – Operates reliably from -30°C to +60°C with IP65 protection against rain, dust, and vibration.
-
Easy Integration – Configurable relay output (NO/NC), adjustable sensitivity, and flexible mounting heights simplify installation with existing barrier controllers.
Technical Specifications Table
|
Parameter |
Specification |
|---|---|
| Frequency Band | 24.125 GHz Doppler Radar |
| Radar Type | Planar Module |
| Transmit Power | <20 dBm |
| Power Supply | 12–36V DC |
| Operating Current | <100 mA |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 0%–95% RH (non-condensing) |
| Mounting Height | 2 m – 7 m |
| Maximum Detection Speed | 25 km/h (vehicles) |
| Response Time | <50 ms |
| Relay Output | 1 channel, NO/NC configurable |
| Relay Load Capacity | Max 125V AC 1A / 60V DC 1A |
| Cable Length | 7 m (pre-wired) |
| Protection Rating | IP65 |
| Housing Material | Anodized Aluminum + Polycarbonate |
| Dimensions | 164 mm × 111 mm × 94.5 mm |
| Weight | 630 g |
| Sensitivity Levels | 5 steps (Low → High) |
| Relay Hold Time Options | 0.2 s / 0.5 s / 1.0 s / 2.0 s / 5.0 s / Continuous / Off |
| Lateral Motion Filter | 4 levels (Off / Low / Medium / High) |
| Anti-EMI Mode | 2 levels (Off / On) |
| Certifications | CE, RoHS, FCC, ISO Compliant |
Functional Highlights for Barrier Gate Systems
-
Vehicle-Only Activation – Prevents pedestrian or stray object triggering, ensuring gates open only for authorized vehicles.
-
Bidirectional Traffic Handling – Recognizes vehicle direction for optimized automation and queue management.
-
Flexible Timing Settings – Adjust relay hold time to match barrier arm speed and safety requirements.
-
Electromagnetic Noise Immunity – Ideal for parking lots with LED lighting, EV chargers, or nearby motors.
-
Quick Deployment – Includes mounting bracket, 7m cable, and intuitive LED indicators for straightforward installation and diagnostics.
Why Choose RVP42-7M Over Conventional Detectors
|
Feature |
RVP42-7M Radar Sensor |
Loop Detector |
Passive Infrared (PIR) Sensor |
|---|---|---|---|
| Detection Accuracy | 95% | ~85% (metal dependent) | ~60–70% (heat signature) |
| False Alarm Rate | <1% | 3–10% | 5–15% |
| Response Speed | <50 ms | ~100 ms | 200–500 ms |
| Weather Resistance | IP65; -30°C to +60°C | Requires pavement work | Limited outdoor durability |
| Installation Complexity | Easy surface mount | Requires cutting slots | Moderate |
| Maintenance Requirement | Minimal | Periodic coil inspection | Frequent calibration needed |

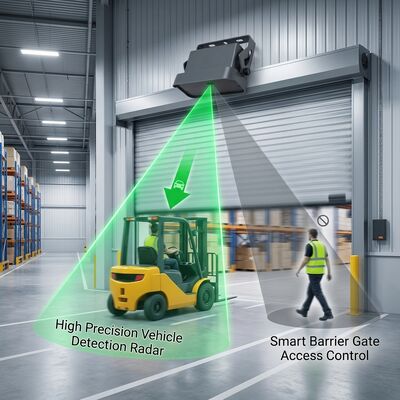

Typical Parking Lot Applications
-
Automated entry/exit barrier gates
-
Vehicle counting & access verification
-
Toll booth lanes & VIP lane management
-
Gated residential communities & commercial complexes
-
Airport/train station parking zones
Installation Tips
-
Mount sensor at 2–7 meters height facing the vehicle approach path.
-
Ensure no large metal objects obstruct the radar beam.
-
Enable lateral motion filter to ignore crossing pedestrians or bicycles.
-
Use anti-interference mode if surrounded by LED signs or EV charging stations.
-
Align sensitivity level according to traffic density and vehicle mix.
Package Contents & Support
-
RVP42-7M sensor unit
-
Mounting bracket and hardware
-
7-meter pre-wired cable
-
User manual
-
Optional: OEM/ODM branding and custom firmware
-
Warranty: 2 years standard (3 years extendable)
-
Support: 24-hour hotline, 48-hour email response, remote configuration assistance
Direction Recognition
